MY-Q585

Item		MY-Q585(Pushbutton)	MY-Q585K(Keylock)
Printing	Print method	Thermal Line Printing
	Resolution	203Dpi(8dot/mm)
	Printing speed	Max.100mm/s
	Printing width	48mm(384dots)
	Interface port	USB+RS232/Bluetooth optional
	Serial port setting	Baud rate：115200 Data bits：8 Stop bit：1 Parity bit：No
Paper	Type	Thermal receipt/label paper
	Width	25-58mm(adjustable)
	Roll paper diameter	Max.50mm
	Thickness	0.053-0.15mm
	Tearing Paper	Auto Cutting(full cutting/partial cutting)
Reliability	TPH life	100km
	Cutter life	1 million times
Font	Chinese	GBK:16x16,24x24
	Western	ASCII:8x16,9x17,9x24,12x24
Barcode	1D code	UPC-A,UPC-E,EAN8,EAN13,code39,ITF,CODEBAR,CODE128,CODE93
	2D code	QR code,PDF417
Power	input	DC 12V-24V/2A(peak value>4A)
Software	Emulation	ESC/POS(Receipt) CPCL、TSPL、JPL(Label)
	Driver	Windows XP、7、8、10、11/ Linux
	SDK	Windows SDK/Linux SDK/Android SDK
Environment	Operating temperature	-10°C-50°C
	Operating humidity	20%RH-85% RH
	Storage temperature	-20°C-60°C
	Storage humidity	5%-90%RH
Physical property	Overall size(LxWxH)	10099.758mm
	Installation size(LxWxH)	96.695.755.4mm

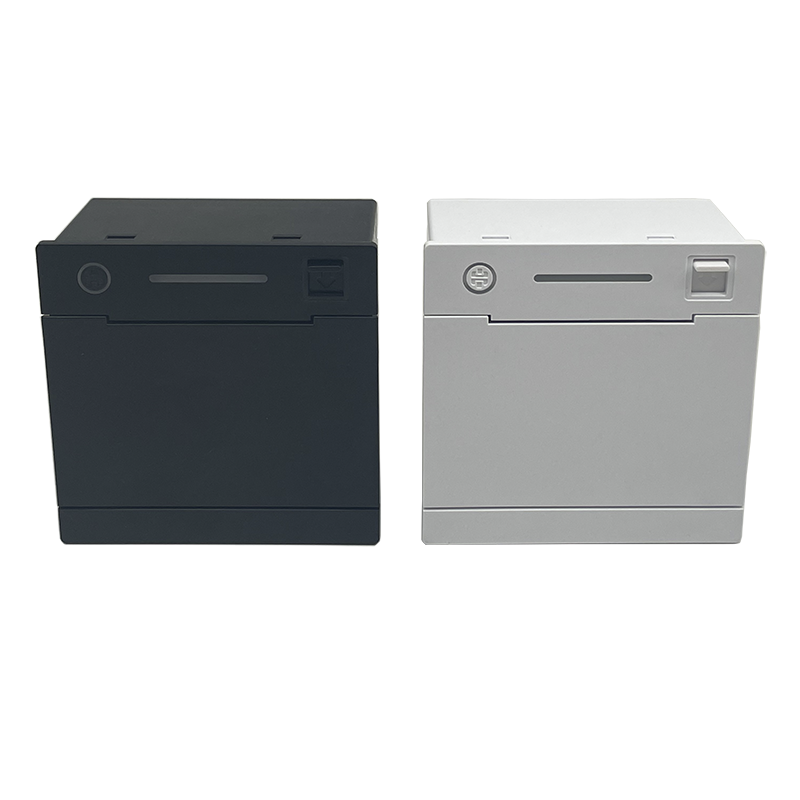

	Color	Black/White
	Weight(KG)	0.3kg
