MY-Q805

Item		MY-Q805(Pushbutton)	MY-Q805(Keylock)
Printing	Print method	Thermal Line Printing
	Resolution	203Dpi(8dot/mm)
	Printing speed	100mm/s
	Printing width	72mm(576dots)
	Interface port	USB+RS232+TTL/Parallel port optional
	Serial port setting	Baud rate：115200 Data bits：8 Stop bit：1 Parity bit：No
Paper	Type	Thermal receipt/label/black mark paper
	Width	43-80mm(adjustable)
	Roll paper diameter	Max.80mm
	Thickness	0.05-0.12mm
	Tearing Paper	Auto Cutting（full cutting/partial cutting)
Reliability	TPH life	100km
Font	Chinese	GBK:16x16,24x24
	Western	ASCII:8x16,9x17,9x24,12x24
Barcode	1D code	UPC-A,UPC-E,EAN8,EAN13,code39,ITF,CODEBAR,CODE128,CODE93
	2D code	QR code,PDF417
Power	input	DC 12V/2A DC 24V/2A
Software	Emulation	ESC/POS(Receipt) CPCL、TSPL、JPL(Label)
	Driver	Windows XP、7、8、10、11/ Linux
	SDK	Windows SDK/Linux SDK/Android SDK
Environment	Operating temperature	-10°C-50°C
	Operating humidity	20%RH-85% RH
	Storage temperature	-20°C-60°C
	Storage humidity	5%-90%RH
Overall size(LxWxH)		131.8114.886mm

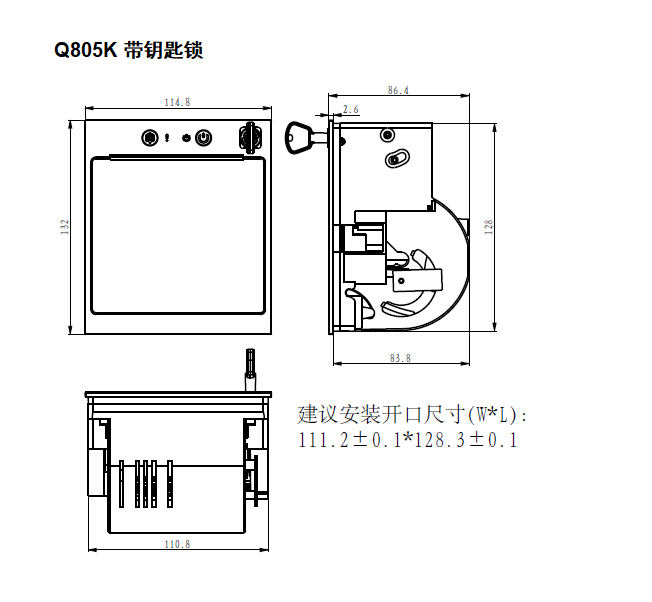

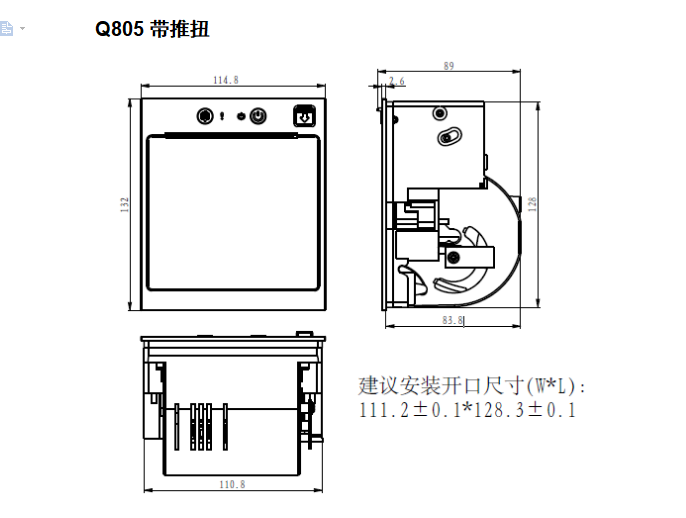

Installation size(LxWxH)		129.5*112.5mm
Weight（KG）		0.45KG
