MY-Q301

1.

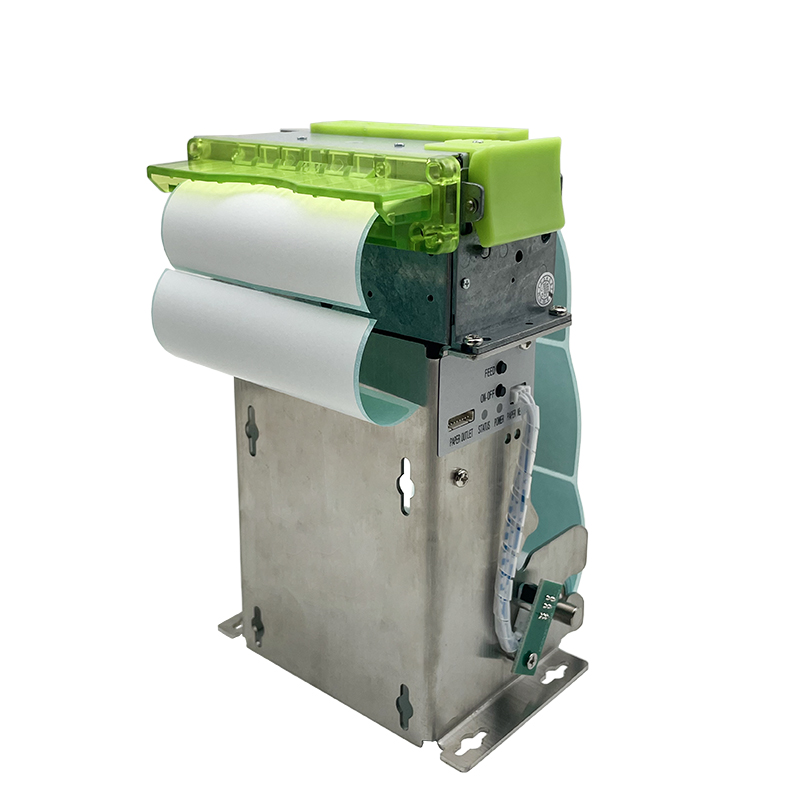

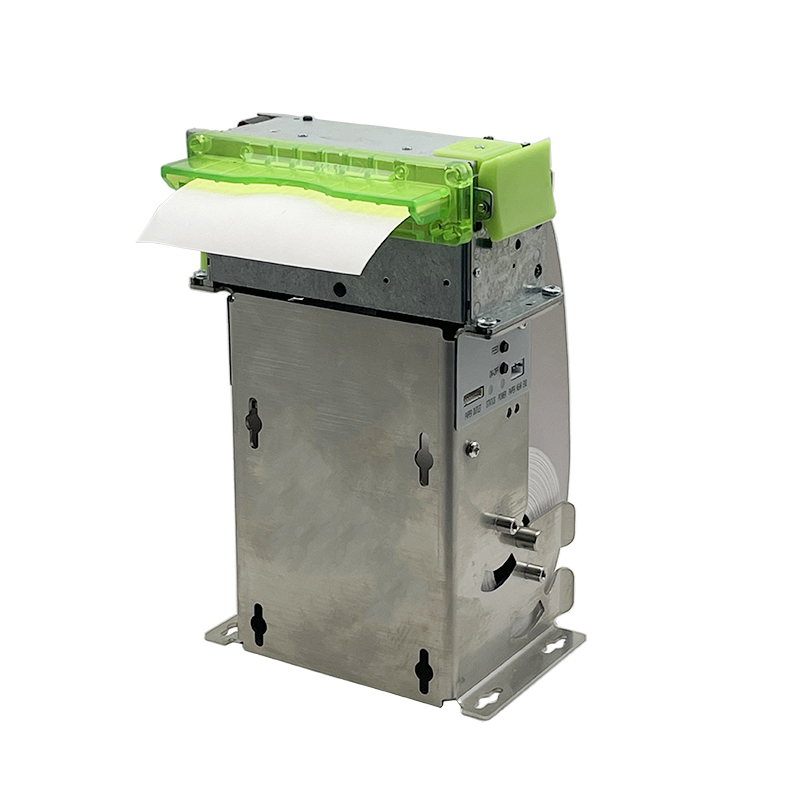

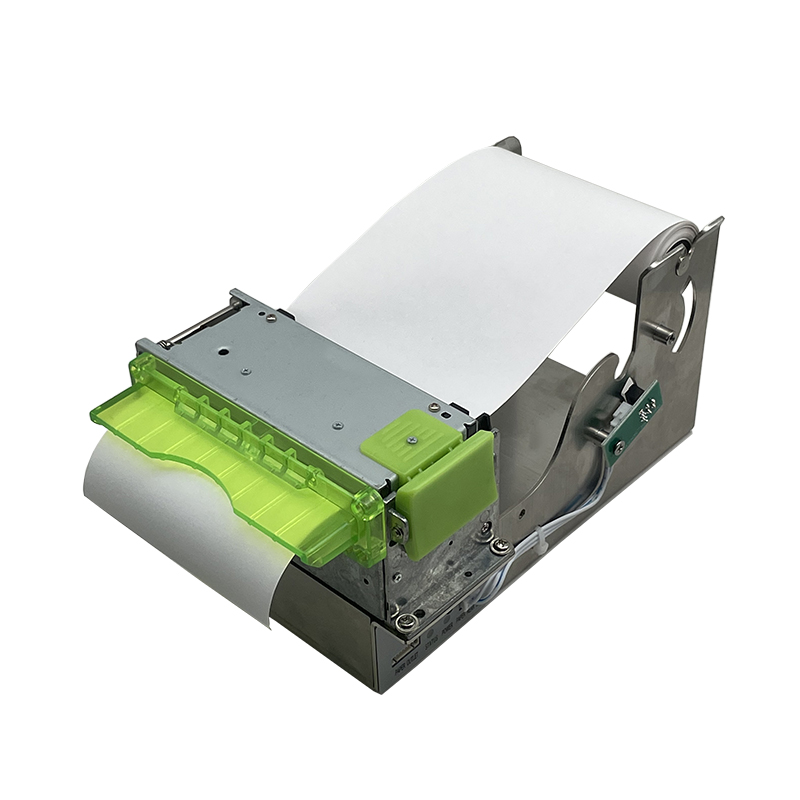

80MM Kiosk Thermal Receipt/Label Pritner
2.
High speed printing, stable performance
3.

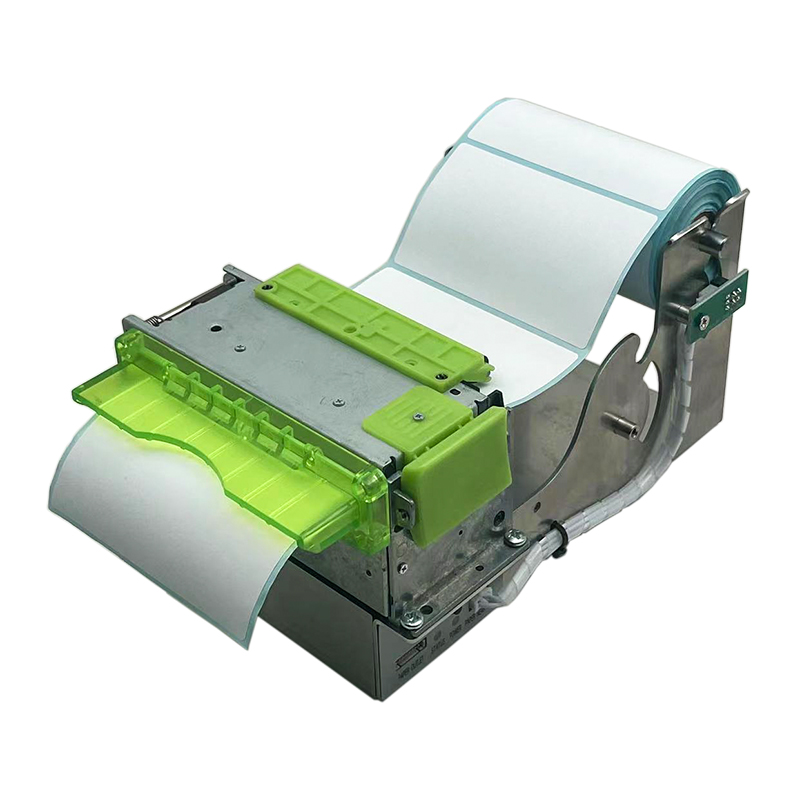

Support thermal receipt/label/black mark Paper printing
4.
Adjustable paper width, support 23-80mm width paper
5.
Optional horizontal/vertical bracker
收藏
  • Description
  • Parameters


ItemMY-Q301(Horizontal Holder)MY-Q301B(Vertical holder)
PrintingPrint methodThermal Line Printing
Resolution203Dpi(8dot/mm)
Printing speedMAX.250mm/s
 Printing width 80mm
Interface portUSB+RS232+Internet
Serial port settingBaud rate:115200  Data bits:8  Stop bit:1 Parity bit:No
PaperTypeThermal receipt/label/black mark Paper
Width23-82.2mm(Adjustable)
Roll paper diameterMax.150mmMax.120mm
Thickness0.053-0.2mm
Paper loadingEasy loading & Automatic feeding paper
Tearing PaperAuto Cutting(full cutting/partial cutting)
ReliabilityTPH life100km
Cutter life1,000,000 times
FontChineseGBK:16x16,24x24
Western ASCII:8x16,9x17,9x24,12x24
Barcode1D codeUPC-A,UPC-E,EAN8,EAN13,code39,ITF,CODEBAR,CODE128,CODE93
2D codeQR code,PDF417
PerformanceRAM64K
FLASH ROM4M
PowerInputDC 24V/2A Instantaneous peak current 6A
SoftwareEmulationESC/POS(Receipt)、CPCL、TSPL、JPL(Label)
DriverWindows XP、7、8、10/ Linux/MAC OS
SDKWindows SDK/Linux SDK/Android SDK/IOS SDK
EnvironmentOperating temperature-10°C-50°C
Operating humidity20%RH-85% RH
Storage temperature-20°C-60°C
Storage humidity5%-90%RH

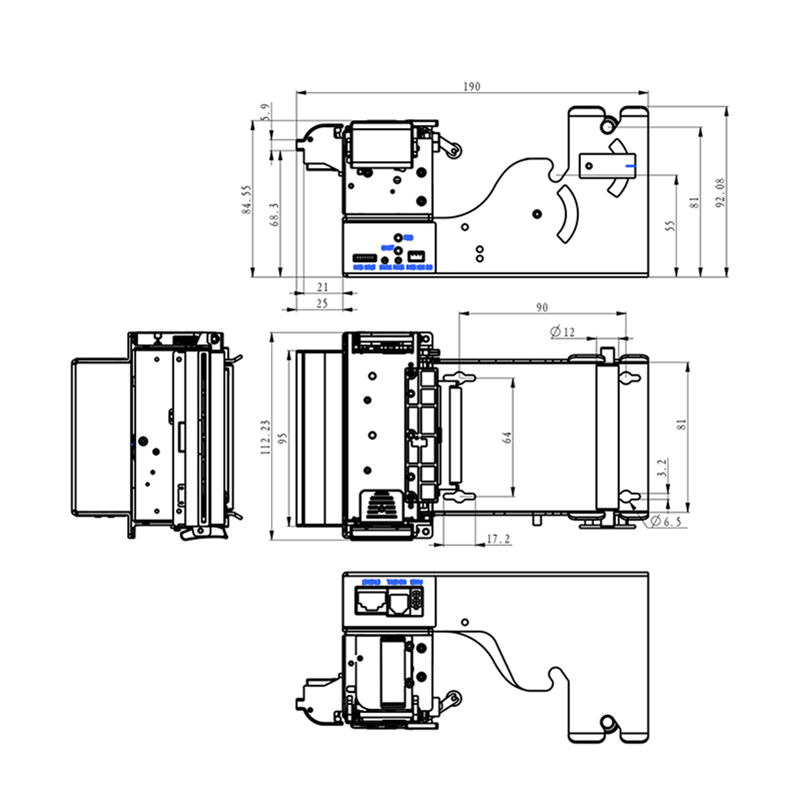

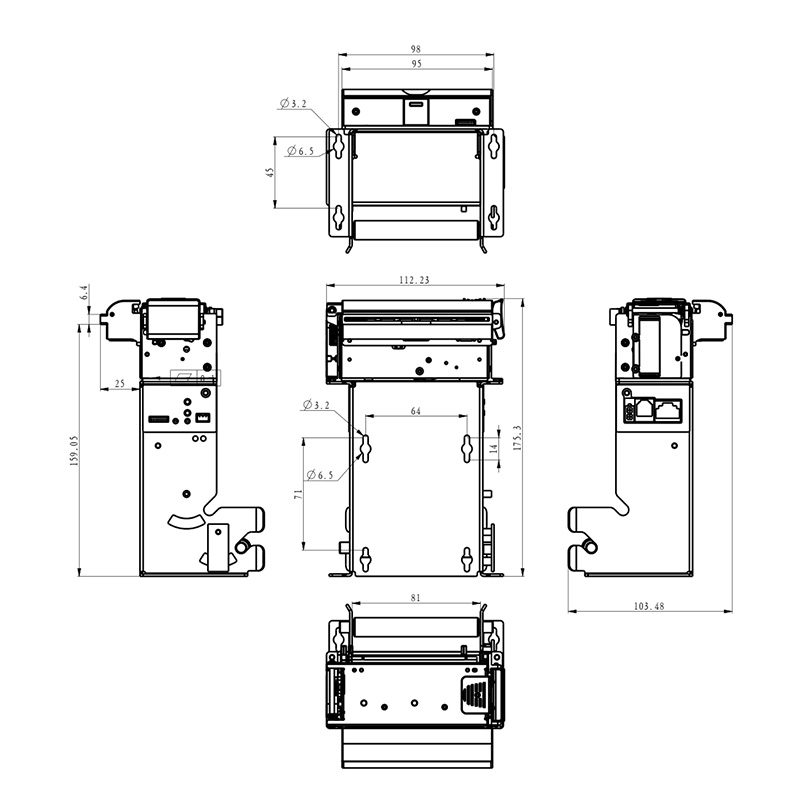

Overall size(LxWxH)Include paper out mouth112*190*84mm(No paper roll)112*159*104mm(No paper roll)
Weight(KG)1.45KG1.45KG
