MY-Q587

1.
58mm kiosk thermal receipt/label printer
2.
Small size, easy to embedded in a variety of devices
3.
With cutter, automatic cutting paper
4.
Supports printing on thermal receipt and label paper
5.
Adjustable paper width, support 20-58mm width paper
6.
No paper loading stock design, optional paper holder
收藏
  • Description
  • Parameters


ItemMY-Q587(No holder）MY-Q587H(With holder）MY-Q587E(With holder）
PrintingPrint methodThermal Line Printing
Resolution203Dpi(8dot/mm)
Printing speed90mm/s
 Printing width 48mm（384dots）
Interface portRS232+USB+TTL
Serial port settingBaud rate：115200  Data bits：8  Stop bit：1 Parity bit：No
PaperTypeThermal receipt/label Paper
Width20-58mm（Adjustable）
Roll paper diameterMax.100mm
Thickness0.05-0.12mm
Paper loadingEasy loading & Automatic feeding paper
Tearing PaperAuto Cutting（full cutting/partial cutting)
ReliabilityTPH life100km
Cutter life1，000，000 times
FontChineseGBK:16x16,24x24
Western ASCII:8x16,9x17,9x24,12x24
Barcode1D codeUPC-A,UPC-E,EAN8,EAN13,code39,ITF,CODEBAR,CODE128,CODE93
2D codeQR code,PDF417
PowerinputDC12-24V/2A wide voltage  Instantaneous peak current 3A
SoftwareEmulationESC/POS(Receipt）   CPCL、TSPL、JPL（Label）
DriverWindows XP、7、8、10、11/ Linux
SDKWindows SDK/Linux SDK/Android SDK
EnvironmentOperating temperature-10°C-50°C
Operating humidity20%RH-85% RH
Storage temperature-20°C-60°C
Storage humidity5%-90%RH

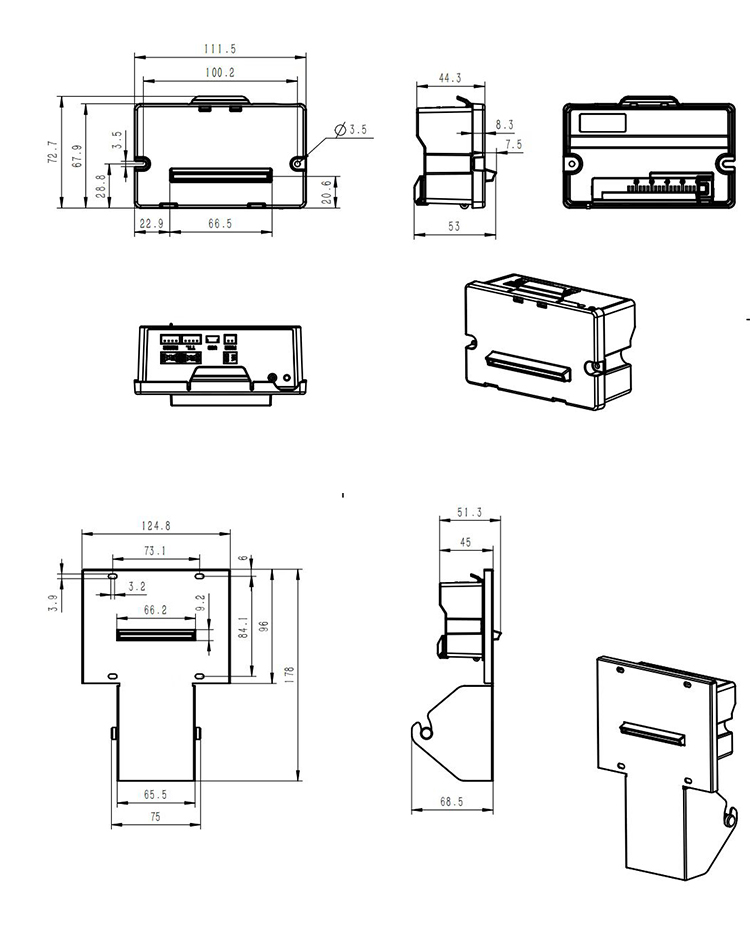

Overall size(LxWxH)111*44*67mm111*62*148mm  178*68*125mm
Weight（KG）0.2KG0.3KG0.5KG
