MY-Q401

Item		MY-Q401
Printing	Print method	Thermal Line Printing
	Resolution	203Dpi(8dot/mm)
	Printing speed	250mm/s
	Printing width	104mm（832dots)
	Interface port	USB+RS232+TTL
	Serial port setting	Baud rate：115200 Data bits：8 Stop bit：1 Parity bit：No
Paper	Type	Thermal receipt/label/black mark Paper
	Width	60~118mm(Adjustable)
	Roll paper diameter	Max.150mm
	Thickness	0.053-0.15mm
	Paper loading	Easy loading & Automatic feeding paper
	Tearing Paper	Auto Cutting（full cutting/partial cutting)
Reliability	TPH life	150km
	Cutter life	1,000,000 times
Font	Chinese	GBK:16x16,24x24
	Western	ASCII:8x16,9x17,9x24,12x24
Barcode	1D code	UPC-A,UPC-E,EAN8,EAN13,code39,ITF,CODEBAR,CODE128,CODE93
	2D code	QR code,PDF417
Performance	RAM	760KB
	FLASH ROM	8M
Power	Input	DC 24V/2A
Software	Emulation	ESC/POS（Receipt）、CPCL、TSPL、JPL（Label）
	Driver	Windows XP、7、8、10/ Linux/MAC OS
	SDK	Windows SDK/Linux SDK/Android SDK/IOS SDK
Environment	Operating temperature	-10°C-50°C
	Operating humidity	20%RH-85% RH
	Storage temperature	-20°C-60°C
	Storage humidity	5%-90%RH

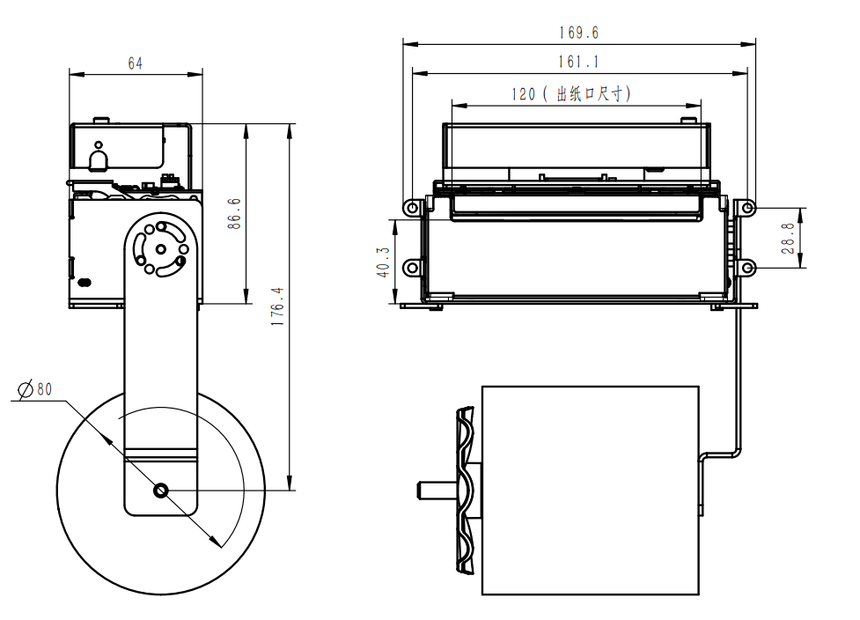

Overall size(LxWxH)		17019687mm(Horizontal Holder）	17064177mm(Vertical holder）
Weight（KG）		1KG
