MY-Q803E

Item		MY-Q803（No holder）	MY-Q803E（With holder）
Printing	Print method	Thermal Line Printing
	Resolution	203Dpi(8dot/mm)
	Printing speed	12V:100mm/s(max) 24V:250mm/s(max)
	Printing width	72mm（576dots）
	Interface port	RS232+USB+TTL
	Serial port setting	Baud rate：115200 Data bits：8 Stop bit：1 Parity bit：No
Paper	Type	Thermal receipt/label Paper
	Width	40-80mm（Adjustable）
	Roll paper diameter	Max.100mm
	Thickness	0.05-0.12mm
	Paper loading	Easy loading & Automatic feeding paper
	Tearing Paper	Auto Cutting（full cutting/partial cutting)
Reliability	TPH life	100km
Font	Chinese	GBK:16x16,24x24
	Western	ASCII:8x16,9x17,9x24,12x24
Barcode	1D code	UPC-A,UPC-E,EAN8,EAN13,code39,ITF,CODEBAR,CODE128,CODE93
	2D code	QR code,PDF417
Power	input	DC12V/2A DC24V/2A Instantaneous peak current 3A
Software	Emulation	ESC/POS(Receipt） CPCL、TSPL、JPL（Label）
	Driver	Windows XP、7、8、10、11/ Linux
	SDK	Windows SDK/Linux SDK/Android SDK
Environment	Operating temperature	-10°C-50°C
	Operating humidity	20%RH-85% RH
	Storage temperature	-20°C-60°C
	Storage humidity	5%-90%RH

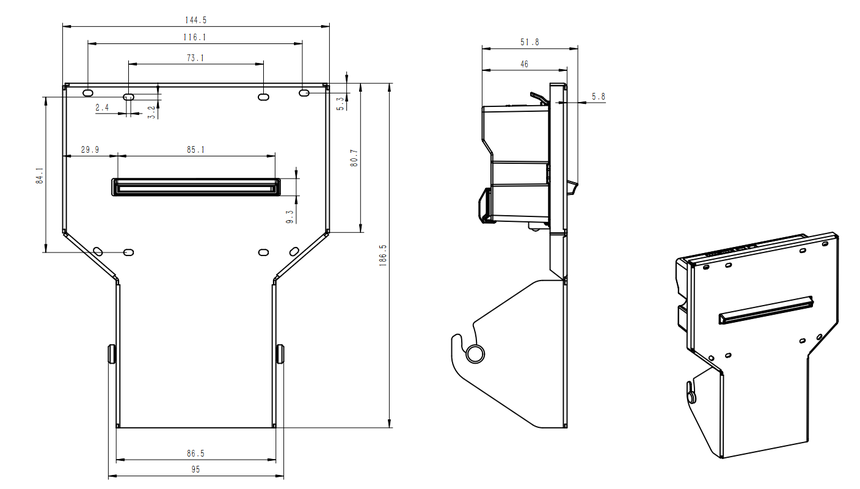

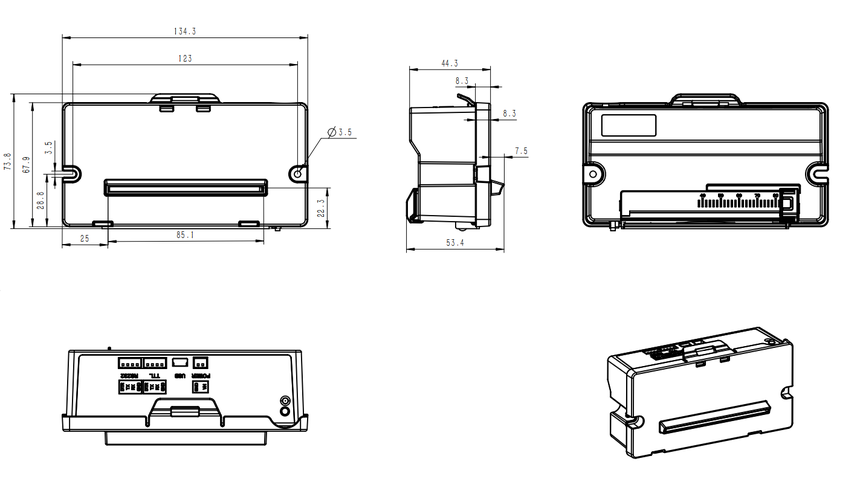

Overall size(LxWxH)		1377353mm	14418665mm
Weight（KG）		0.25kg	0.6kg
