MY-IP567

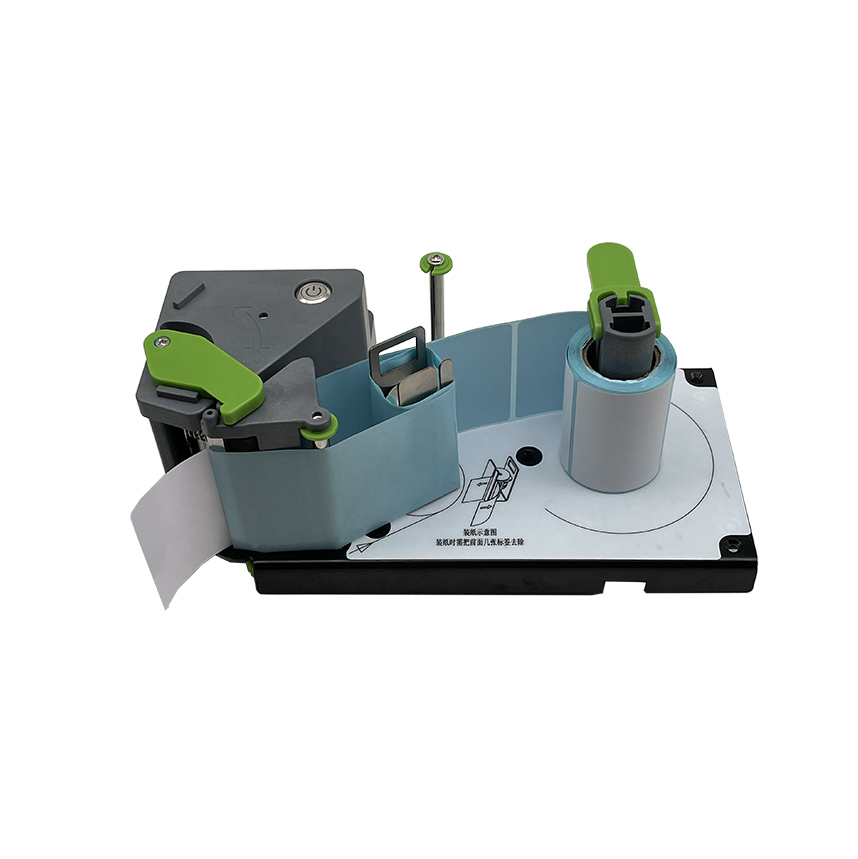

4.: Automatically peeled off the label,automatically recycled the backing paper

Item		MY-IP567
Printing	Print method	Thermal Line Printing
	Resolution	203Dpi(8dot/mm)
	Printing speed	100mm/s
	Printing width	56mm(384dots)
	Interface port	USB+RS232/Internet Optional
	Serial port setting	Baud rate：115200 Data bits：8 Stop bit：1 Parity bit：No
Paper	Type	Thermal Label Paper
	Width	10-60mm（adjustable）
	Roll paper diameter	Max.100mm
	Thickness	0.1-0.12mm
Reliability	TPH life	50km
Font	Chinese	GBK:16x16,24x24
Font	Western	ASCII:8x16,9x17,9x24,12x24
Barcode	1D code	UPC-A,UPC-E,EAN8,EAN13,code39,ITF,CODEBAR,CODE128,CODE93
Barcode	2D code	QR code,PDF417
Power	input	DC24V/2.5A
Software	Emulation	ESC/POS
	Driver	Windows XP、7、8、10、11/ Linux
	SDK	Windows SDK/Linux SDK/Android SDK
Environment	Operating temperature	-10°C-50°C
	Operating humidity	20%RH-85% RH
	Storage temperature	-20°C-60°C
	Storage humidity	5%-90%RH
Overall size(LxWxH)		22210797mm
Weight（KG）		1.05KG
