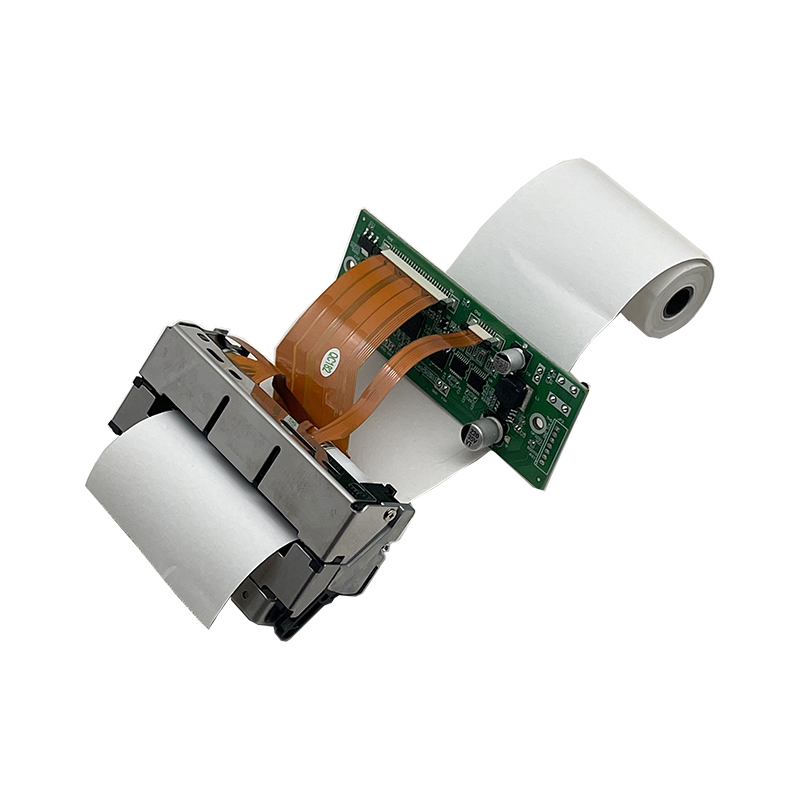

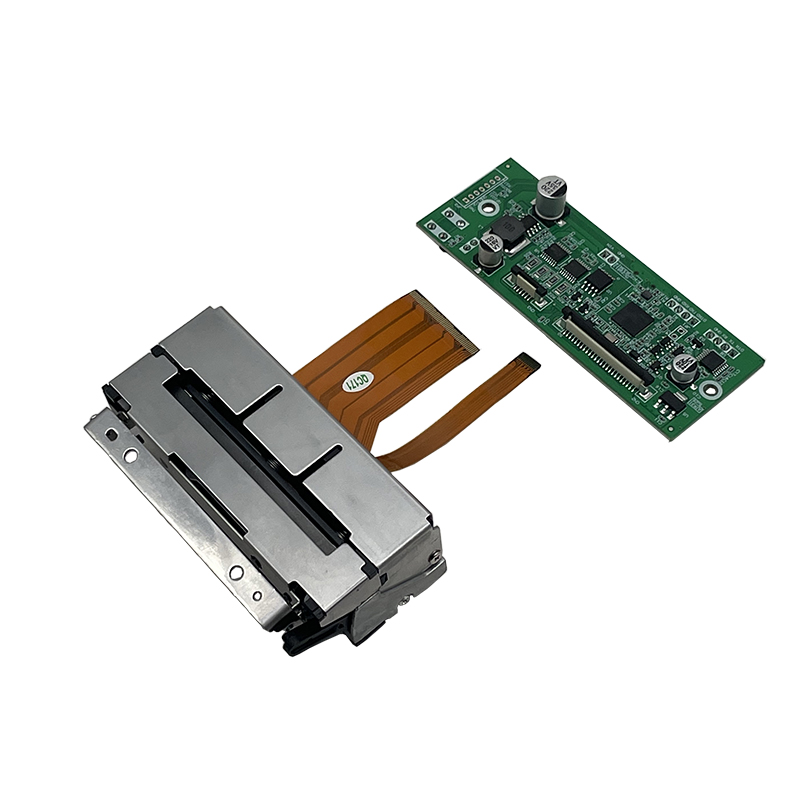

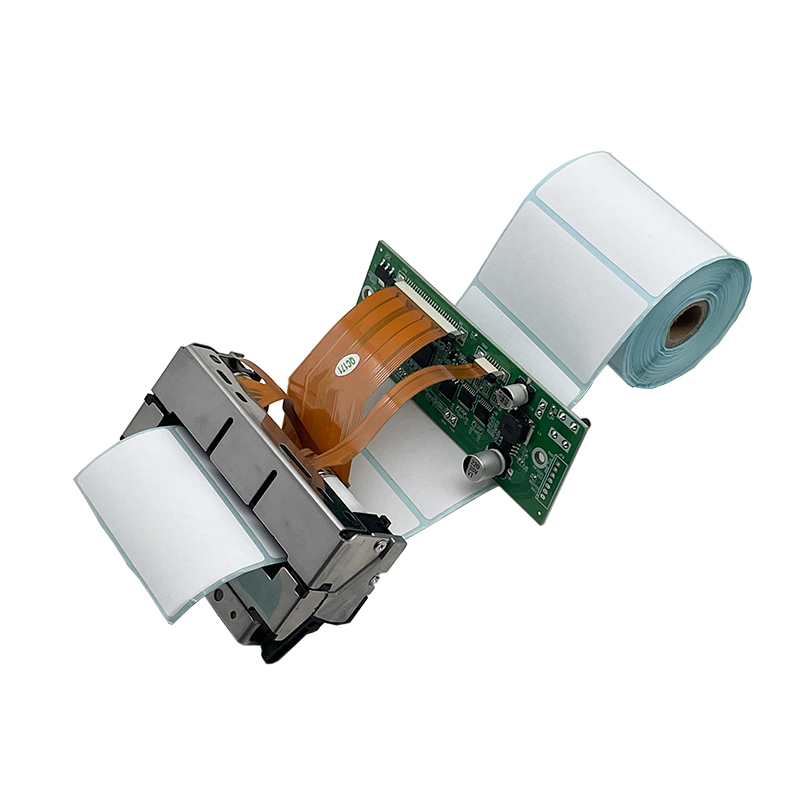

MY-D245

Item		MY-D245
Printing	Interface port	USB+RS232+TTL
	Print method	Thermal Line Printing
	Resolution	203Dpi(8dot/mm)
	Printing Speed	90mm/s
	Printing width	48mm(384dots)
	Serial port setting	Baud rate：115200 Data bits：8 Stop bit：1 Parity bit：No
Paper	Type	Thermal receipt/label Paper
	Width	57.5±0.5mm
	Roll paper diameter	Max.100mm
	Thickness	0.05-0.12mm
	Paper loading	Easy loading & Automatic feeding paper
	Tearing Paper	Auto Cutting（full cutting/partial cutting)
Reliability	TPH life	100km
	Cutter life	1，000，000 times
Font	Chinese	GBK:16x16,24x24
	Western	ASCII:8x16,9x17,9x24,12x24
Barcode	1D code	UPC-A,UPC-E,EAN8,EAN13,code39,ITF,CODEBAR,CODE128,CODE93
	2D code	QR code,PDF417
Power	input	DC12-24V/2A wide voltage
Software	Emulation	ESC/POS
	Driver	Windows XP、7、8、10、11/ Linux
	SDK	Windows SDK/Linux SDK/Android SDK
Environment	Operating temperature	-10°C-50°C
	Operating humidity	20%RH-85% RH
	Storage temperature	-20°C-60°C
	Storage humidity	5%-90%RH
Merchanism Size(LxWxH)		83.143.927.4mm
Weight（KG）		0.15KG
