MY-E8M

Item		MY-E8M

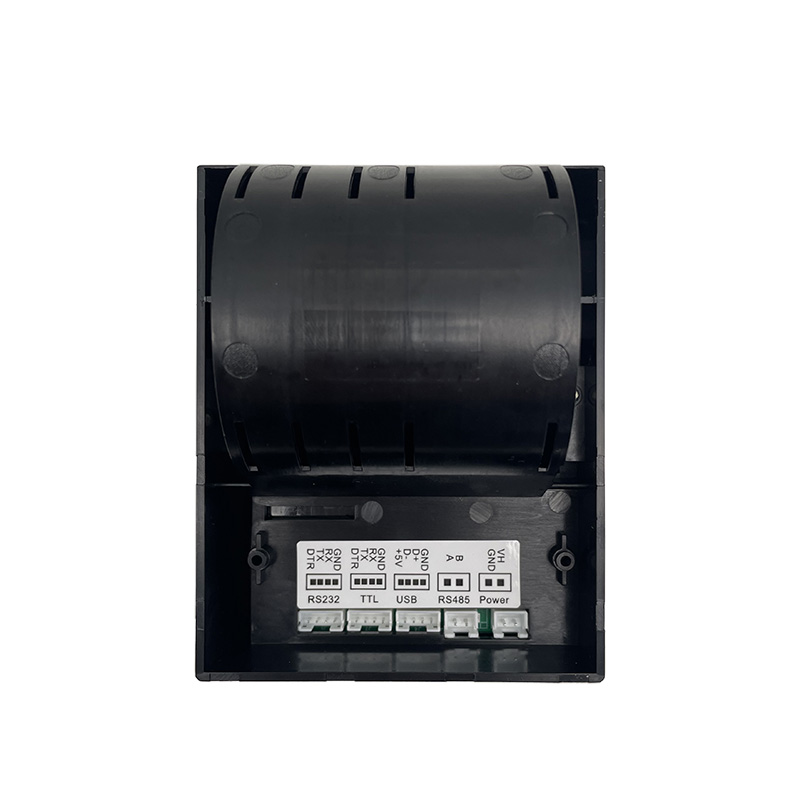

Printing	Print method	USB+RS232+TTL+485
	Resolution	Thermal Line Printing
	Printing speed	203Dpi(8dot/mm)
	Printing width	90mm/s(max)
	Interface port	48mm(384dots)
	Serial port setting	Baud rate：115200 Data bits：8 Stop bit：1 Parity bit：No
Paper	Type	Thermal receipt/label paper
	Width	20-58mm(adjustable)
	Roll paper diameter	Max.60mm
	Thickness	0.05-0.12mm
	Tearing paper	by hand
Reliability	TPH life	50km
Font	Chinese	GBK:16x16,24x24
	Western	ASCII:8x16,9x17,9x24,12x24
Barcode	1D code	UPC-A,UPC-E,EAN8,EAN13,code39,ITF,CODEBAR,CODE128,CODE93
	2D code	QR code,PDF417
Power	Input	DC8V-24V/1.5A Instantaneous peak current 3A
Software	Emulation	ESC/POS(receipt) CPCL/TSPL/JPL(Label)
	Driver	Windows XP、7、8、10/ Linux
	SDK	Windows SDK/Linux SDK/Android SDK
Environment	Operating temperature	-10°C-50°C
	Operating humidity	20%RH-85% RH
	Storage temperature	-20°C-60°C
	Storage humidity	5%-90%RH

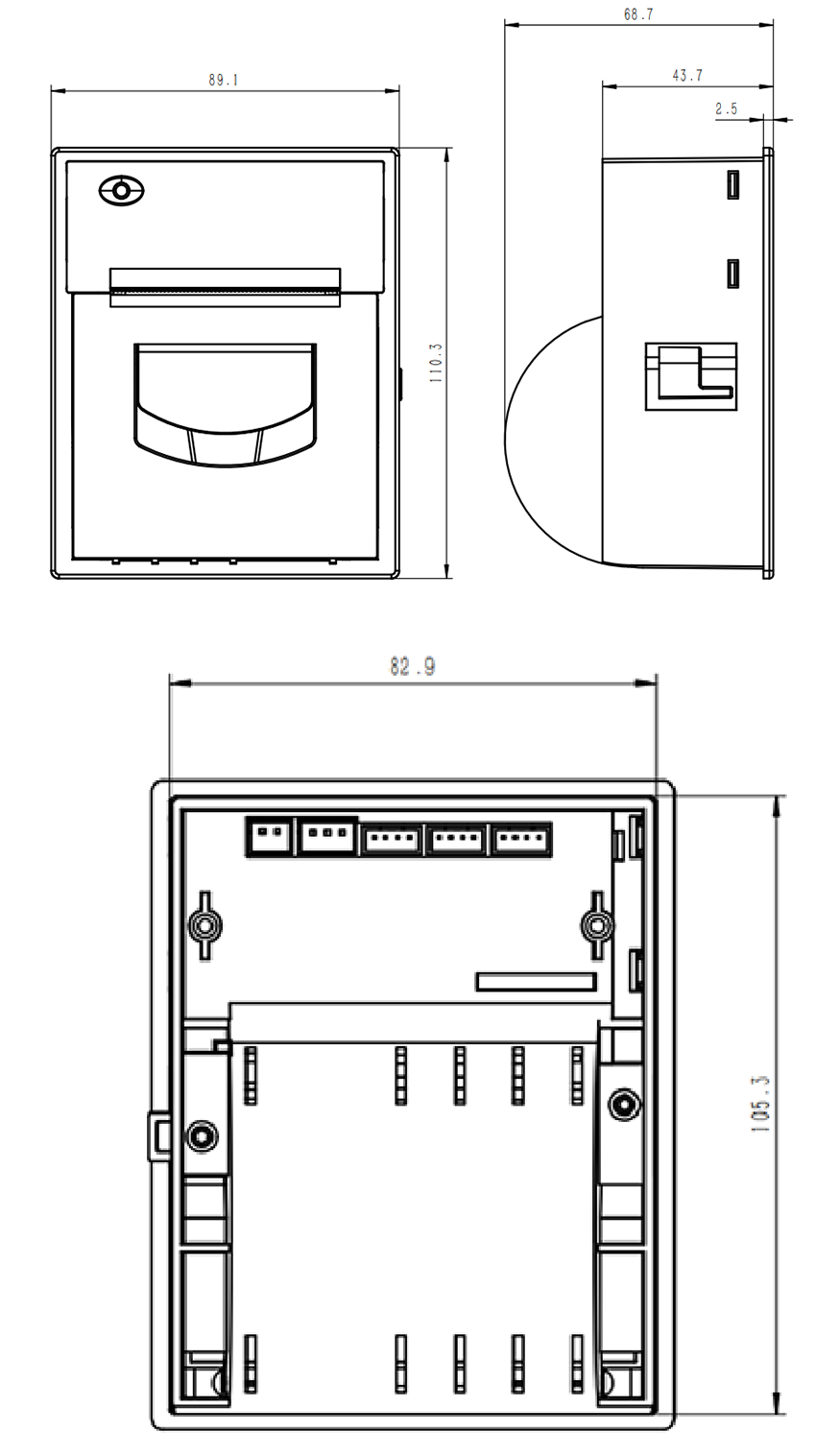

Overall size(LxWxH)		1118970mm
Installation Size(LxWxH)		1058268mm
Weight（KG）		0.25KG
