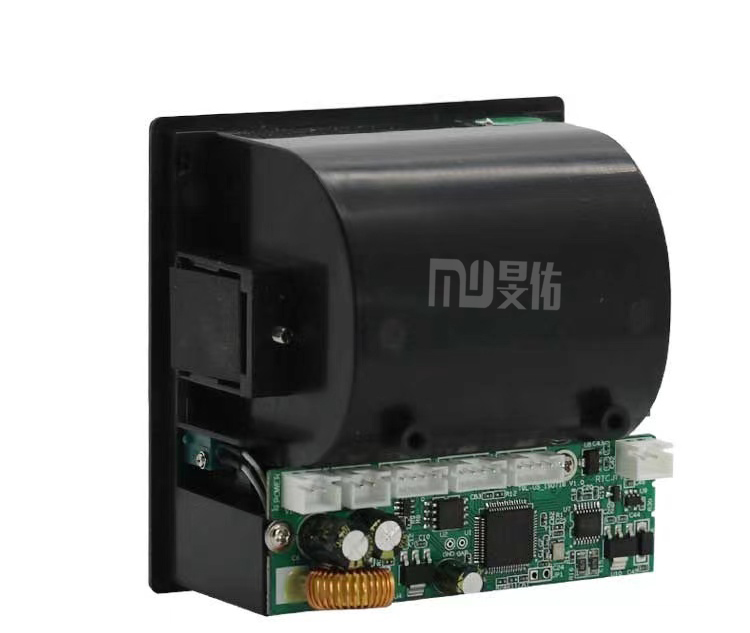

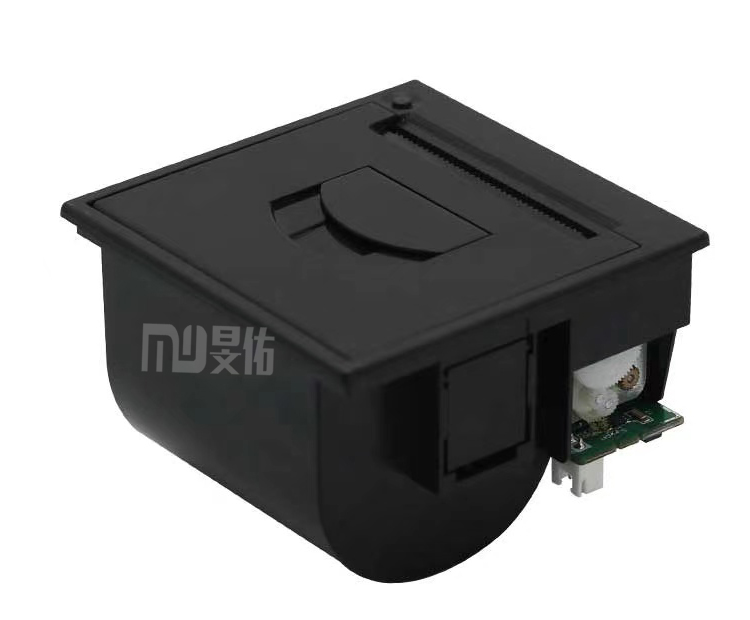

MY-E9L

Item		MY-E9L
Printing	Print method	USB+TTL+RS232
	Resolution	Thermal Line Printing
	Printing speed	203Dpi(8dot/mm)
	Printing width	80mm/s
	Interface port	48mm(384dots)
	Serial port setting	Baud rate：115200 Data bits：8 Stop bit：1 Parity bit：No
Paper	Type	Thermal receipt/label paper
	Width	57.5±0.5mm
	Roll paper diameter	Max.50mm
	Thickness	0.05-0.12mm
	Tearing paper	by hand
Reliability	TPH life	50km
Font	Chinese	GBK:16x16,24x24
	Western	ASCII:8x16,9x17,9x24,12x24
Barcode	1D code	UPC-A,UPC-E,EAN8,EAN13,code39,ITF,CODEBAR,CODE128,CODE93
	2D code	QR code,PDF417
Power	Input	DC 5-9V/1.5A DC12V/1.5A
Software	Emulation	ESC/POS
	Driver	Windows XP、7、8、10、11/ Linux
	SDK	Windows SDK/Linux SDK/Android SDK
Environment	Operating temperature	-10°C-50°C
	Operating humidity	20%RH-85% RH
	Storage temperature	-20°C-60°C
	Storage humidity	5%-90%RH
Overall size(LxWxH)		858559.3mm
Installation Size(LxWxH)		80*80mm
Weight（KG）		0.25KG
