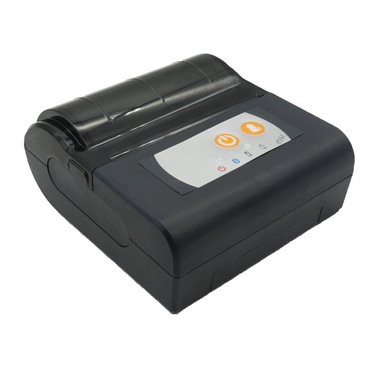

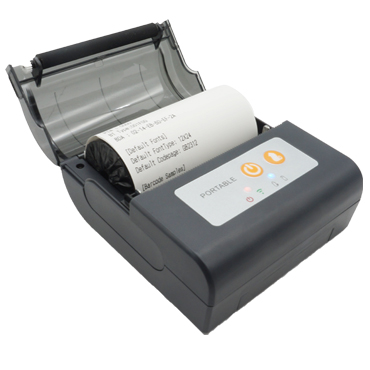

MY-P80C

1.
80MM Portable Thermal Receipt Pritner
2.
Bluetooth /USB connection is supported,WIFI optional
3.
Supports various software/takeaway platforms
4.
Strong compatibility, simple operation
5.
High performance lithium battery, durable
收藏
  • Description
  • Parameters


ItemMY-P80C
PrintingInterfaceUSB+Bluetooth
Print methodThermal Line Printing
Resolution203Dpi(8dot/mm)
Printing speed80mm/s
 Printing width 72mm(576dots)
Serial port settingBaud rate：9600  Data bits：8  Stop bit：1 Parity bit：No
PaperTypeThermal receipt paper
Width79.5±0.5mm
Roll paper diameterMax.40mm
Thickness0.05-0.1mm
Tearing Paperby hand
ReliabilityTPH life50km
FontChineseGBK:16x16,24x24
Western ASCII:8x16,9x17,9x24,12x24
Barcode1D codeUPC-A,UPC-E,EAN8,EAN13,code39,ITF,CODEBAR,CODE128,CODE93
2D codeQR code,PDF417
PowerBatteryRechargeable lithium-ion battery：7.4V，1500mAh
input   DC5V/1A
SoftwareEmulationESC/POS
DriverWindows XP、7、8、10、11/ Linux
SDKWindows SDK/Linux SDK/Android SDK
EnvironmentOperating temperature-10°C-50°C
Operating humidity20%RH-85% RH
Storage temperature-20°C-60°C
Storage humidity5%-90%RH
Overall size(LxWxH)106.4*10.1.7*49mm
Weight（KG）0.45KG
